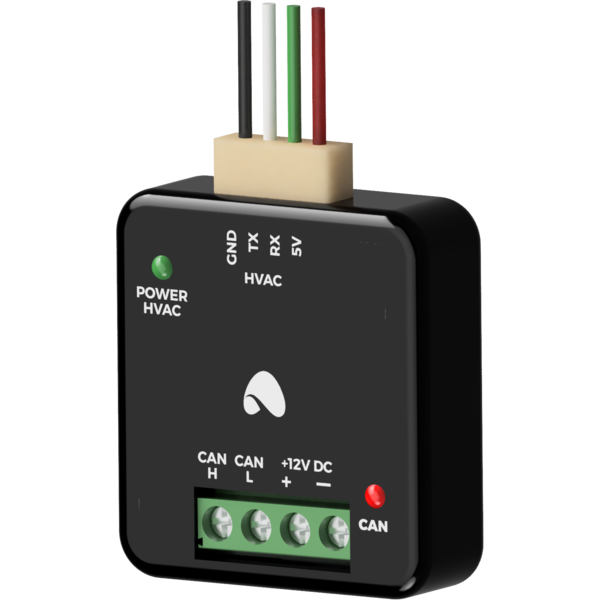

The image above is for illustration purpose only. The actual module may vary from the one presented here.
At the ordering stage, it is necessary to specify the model of the air conditioner in order to check compatibility and the choice of cables for communication with the unit.
Module M-CON-HVAC-p is a component of the Ampio system. Required voltage to power the module is 11 — 16V DC. The module is controlled via CAN bus.
List of devices supported by the M-CON-HVAC-p module:
The M-CON-HVAC-p module communicates with the indoor units of air conditioners for integration purposes. The module’s dimensions allow it to be concealed inside the indoor unit’s housing. The connection of the module to the units varies between manufacturers and HVAC unit models. One M-CON-HVAC-p module is responsible for controlling one air conditioning unit.
On the front of the module there are signalling LED indicators. The redl LED with the label CAN indicates the status of communication on the CAN bus:
The module is programmed with the use of the Ampio Designer software. It allows you to modify the parameters of the module and define its behaviour in response to signals directly available to the module as well as general information coming from all devices present in the home automation bus.
Dimensions expressed in millimeters.
The dashed lines mark the areas where the device connectors or its other elements can be located.
Click to enlarge and open in a new tab.
